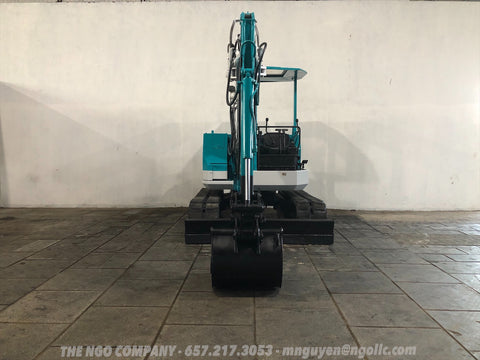

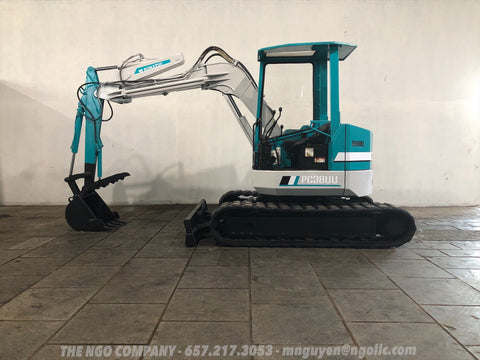

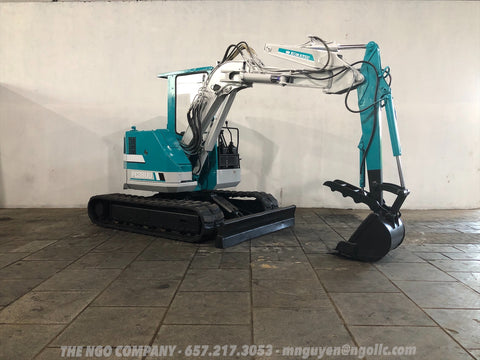

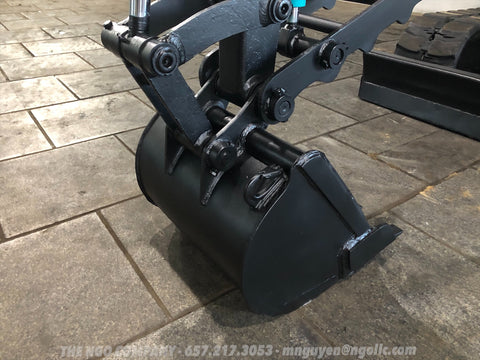

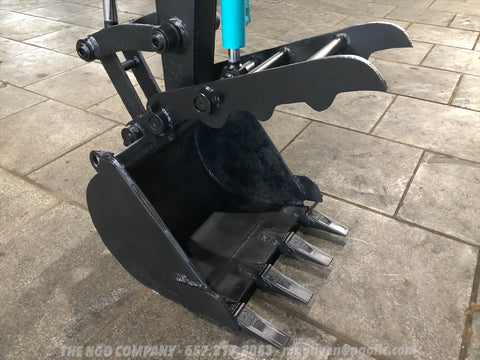

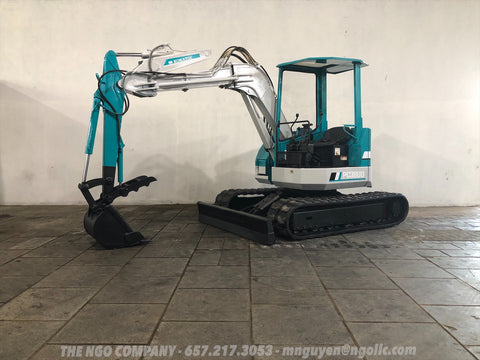

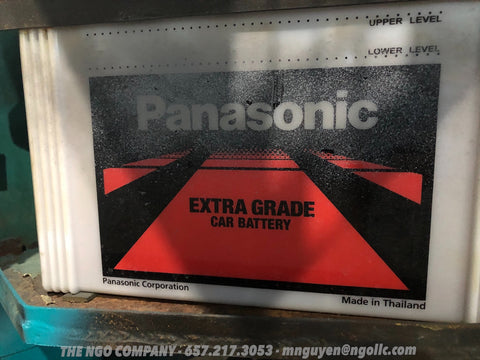

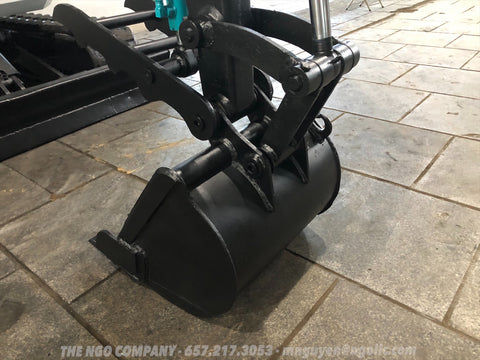

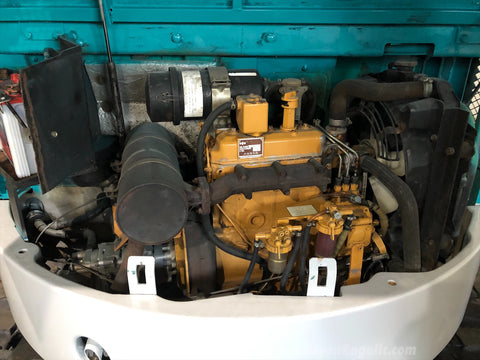

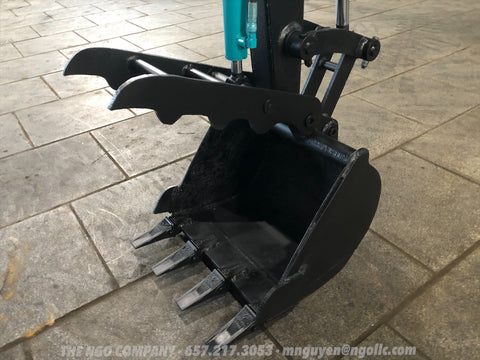

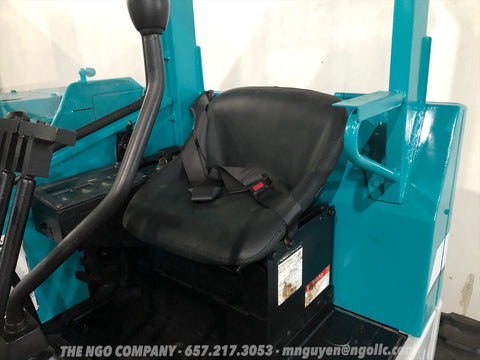

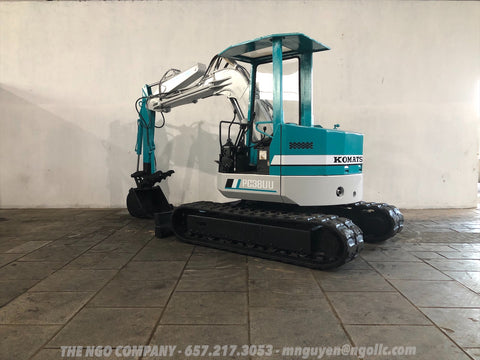

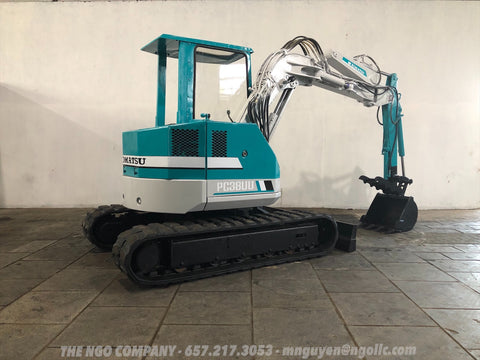

This 1992-built Komatsu PC38UU compact excavator with 9,000-pound operating weight has been professionally reconditioned and thoroughly serviced. It only has 2,756 hours, and the machine is in great running condition with minor cosmetic wear and tear as shown on our photos and demonstration video. This machine is equipped with a Komatsu 3D84-1GA diesel engine delivering 30 horsepower. The unit has been upgraded with new hydraulic thumb, new Panasonic starting battery, new seat & seat belt, new decals, and new paint.

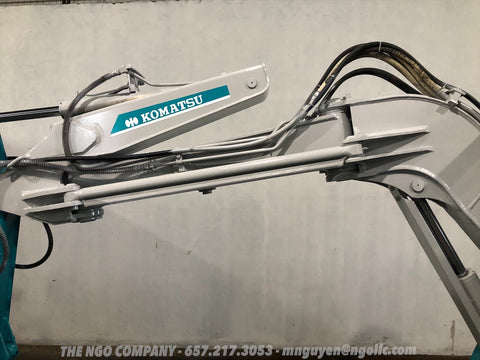

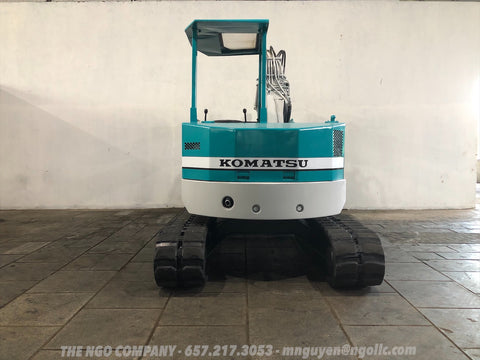

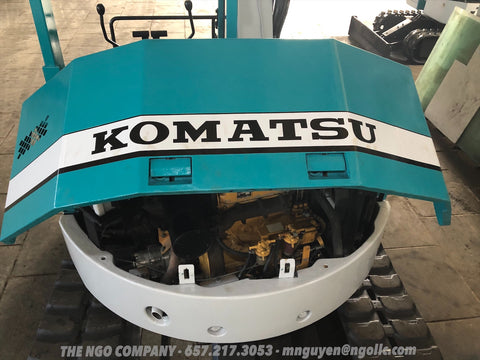

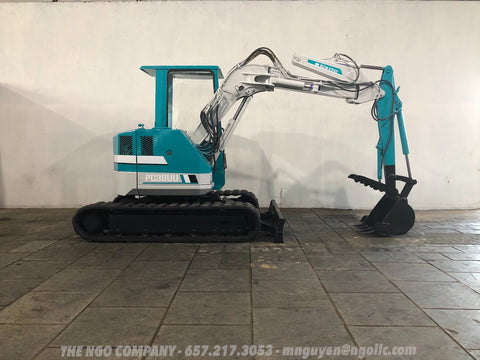

This Komatsu PC38UU has a highly-sought-after two-piece offset boom which is particularly useful for tight workspace applications with limited swing. If you are working in a tight alley, the boom can knuckle off to the right or left so that the machine can dig in line with one of the tracks up next to a structure. This PC38UU is also a zero-tail swing machine with its 1610-mm upper body, 1840-mm overall width, and a tail swing radius of 900 mm (2'11"). This machine also comes with a quick valve shifter that switches between SAE (a.k.a. CAT, backhoe) and Japanese (a.k.a. Komatsu) control patterns.

- Operation & Maintenance: Available for Customer Only

- Shop & Repair: Not Available

- Excavator Parts: Available for Customer Only

- Engine Parts: Available for Customer Only

- Make: Komatsu

- Model: PC38UU

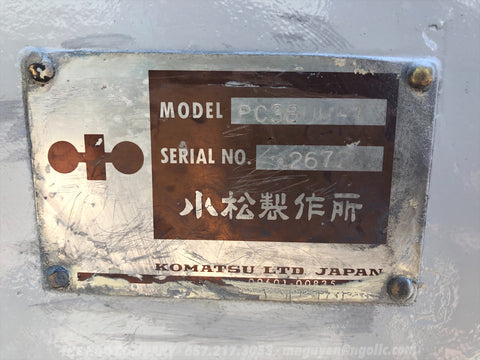

- Serial #: 2672

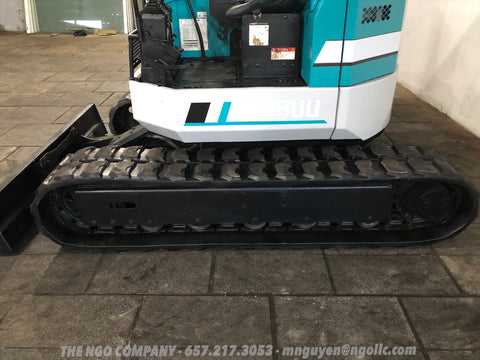

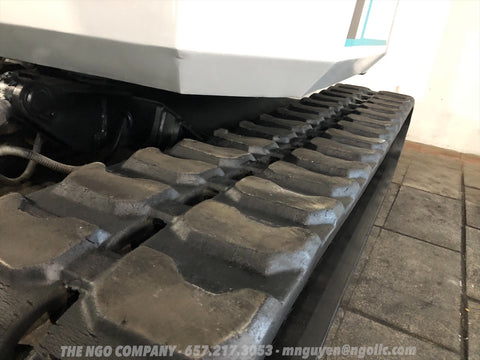

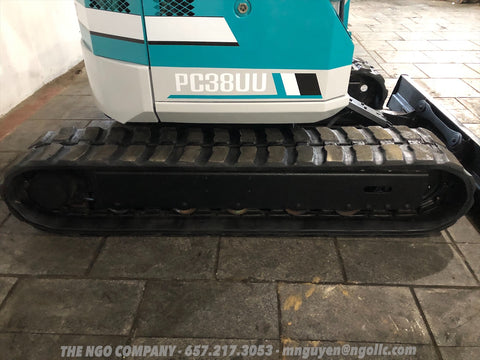

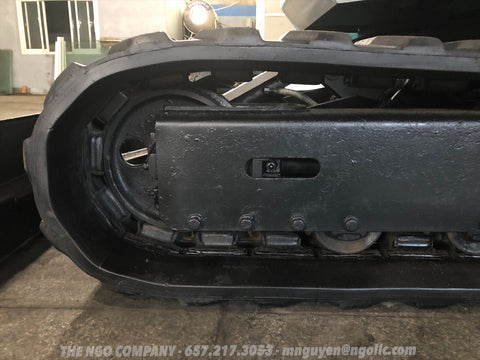

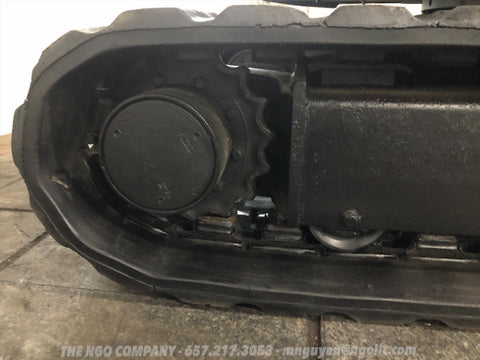

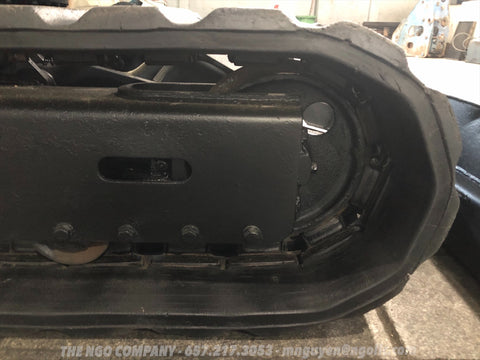

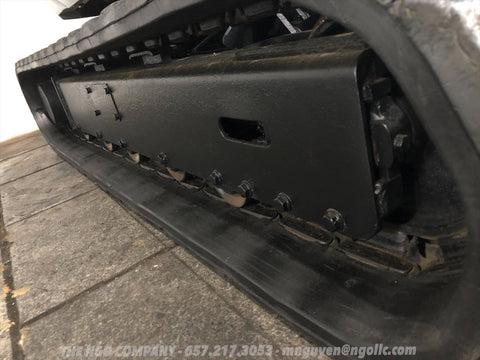

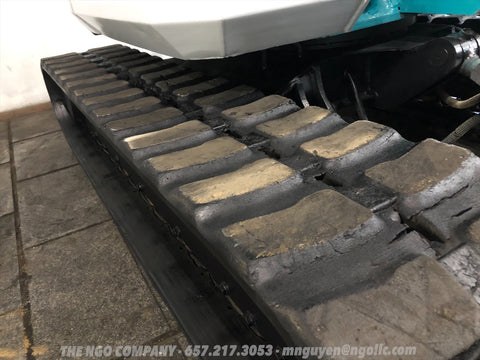

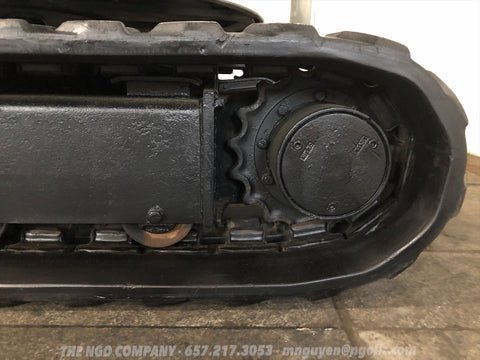

- Track: Rubber (used)

- Year Built: 1992

- Hour Meter: 2,756

- Origin: Japan

- Operating weight: 4,055 Kg (8,941 lbs)

- Swing speed: 8.5 rpm

- Swing max slope angle: ? deg.

- Travel speed: 3.0 kmh (1.9 mph) & 1.7 kmh (1.1 mph)

- Gradeability: 30 deg.

- Make: Komatsu

- Serial #: 44294

- Fuel: Diesel

- Model: 3D84-1GA (4-cycle, water-cooled)

- No. of cylinders - bore x stroke: ?

- Piston displacement: 1.413 L (86.2 cu.in.)

- Firing order: ?

- Flywheel horsepower: 30 HP @ 2,700 RPM

- Max torque: ? Kgm @ ? rpm

- Max speed at no load (high idling) : ? rpm

- Min speed at no load (low idling): ? rpm

- Min fuel consumption: ? g/HP.h

- Alternator: ?

- Starting Motor: ?

- Battery: ?

- Overall Length: 4,370 mm (14'4")

- Overall Width: 1,850 mm (6'1")

- Overall Height: 2,380 mm (7'10")

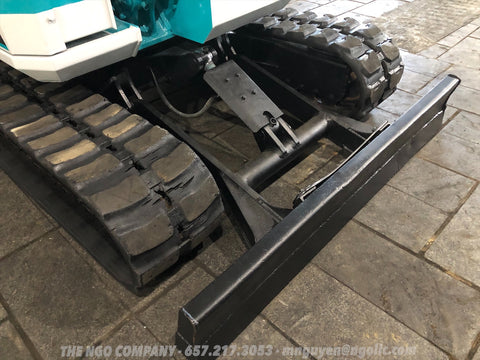

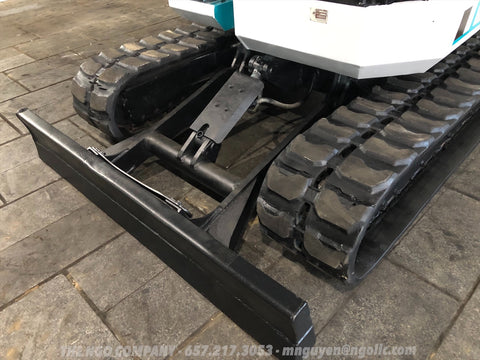

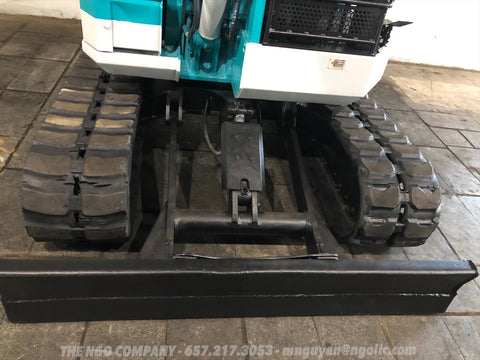

- Backfill Blade Width: 1,850 mm (6'1")

- Bucket Width: 600 mm (2'0")

- Thumb Width: 270 mm (0'11")

- Track Width: 400 mm (1'4")

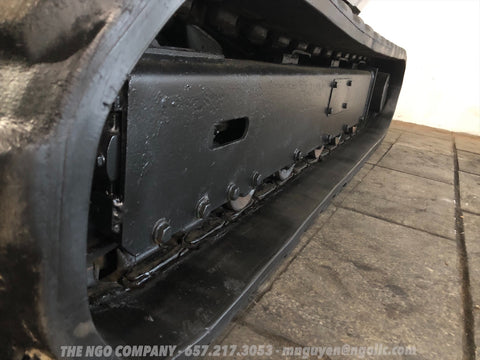

- Track Length: 2,355 mm (7'9")

- Track Standard:

300mm (W) x 52.5mm (P) x 84 (L) or

400mm (W) x 72.5mm (P) x 70 (L)

​​​​​

- Boom Cylinder: 685 mm (27.0")

- Arm Cylinder: 608 mm (23.9")

- Bucket Cylinder: 520 mm (20.5")

- Thumb Cylinder: 286 mm (11.3")
